Model Rocketry Tips

by James Bell (TRA 4957)

Have a question? Write me at KC10Engr@aol.com

You need

to view the PDF files

Pictures & Diagrams

This controller has ignited 5 motor "G" clusters

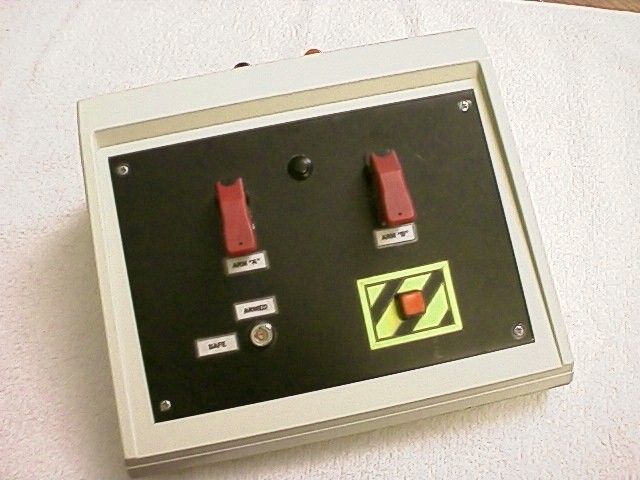

12 Volt Launch Controller

 This is a hi-resolution GIF file

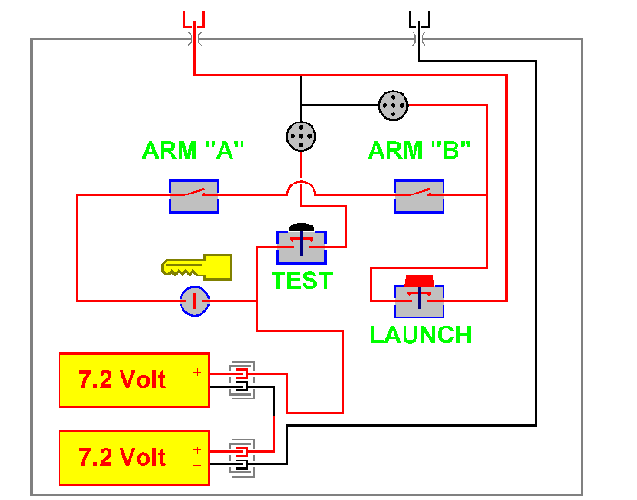

Controller Wiring Diagram

CLICK HERE to download the instruction sheet for the controller in PDF format

A no-frills verions of the 12 Volt controller

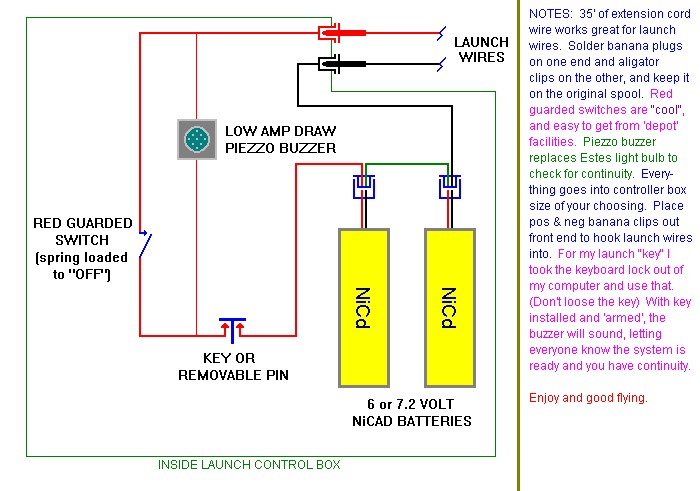

Economy version of the launch controller

 35' of extension cord wiring works great

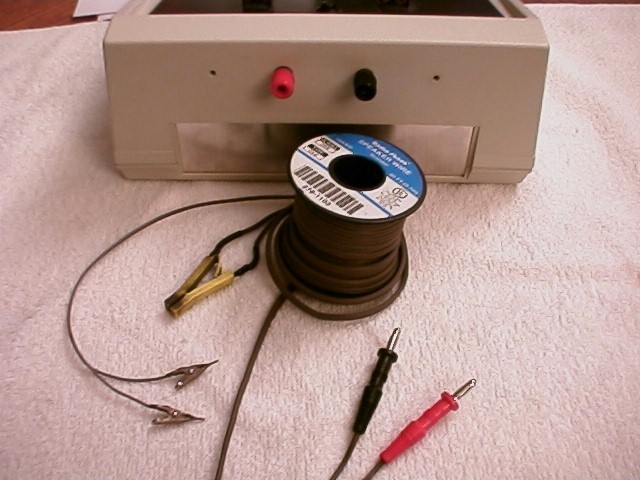

Wiring harness and leads
RMS 18/20 - 24/40 - 29/40-120

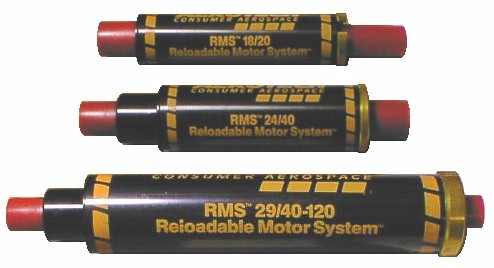

Aerotech's Reloadable Motor System casings

 Made from a standard 12 Volt auto brake bulb

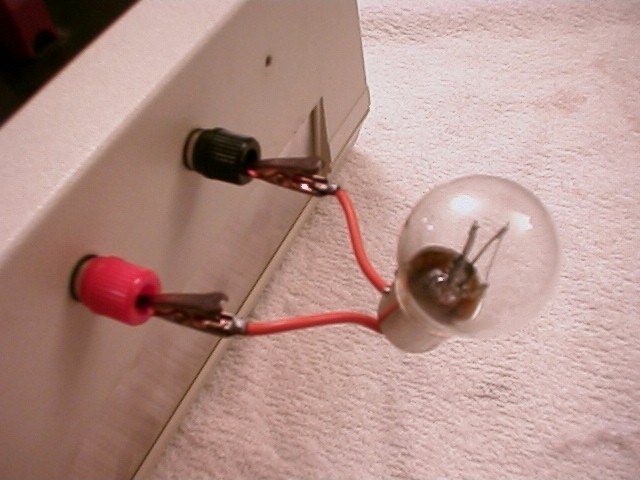

Bulb tester for launch controller

 Copper tubing cut on the leading edge

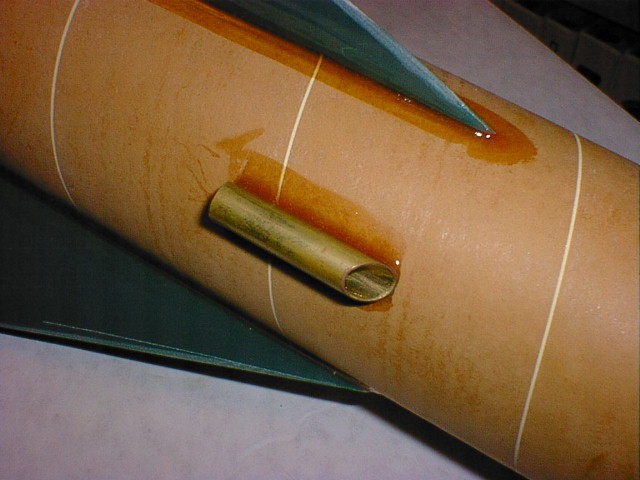

Launch Lug Detail

 CRITICAL to wire in parallel and NOT series

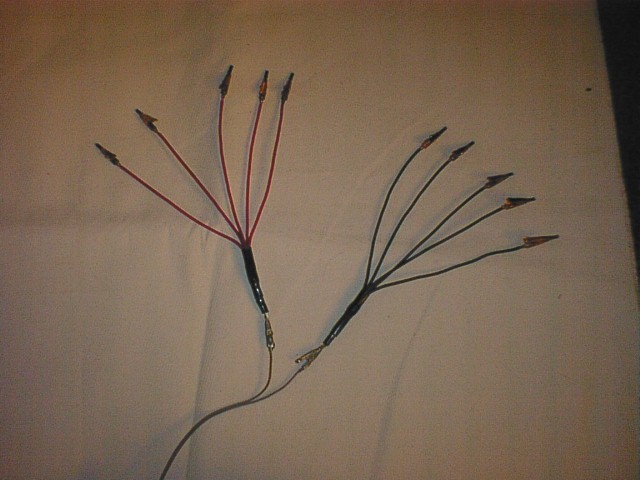

Cluster wiring connections

 ALTS2-50K model has dual ejection control and altitude readout

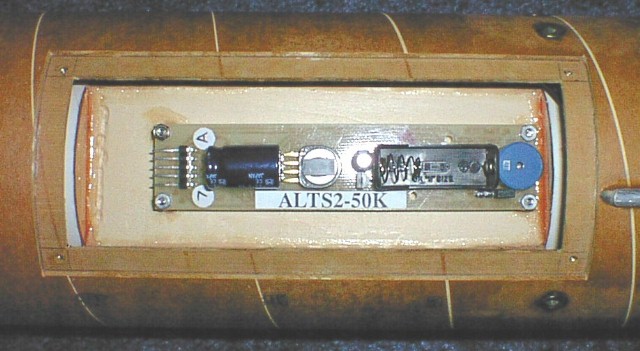

An electronic altimeter from ADEPT
These are actual aircraft switch guards

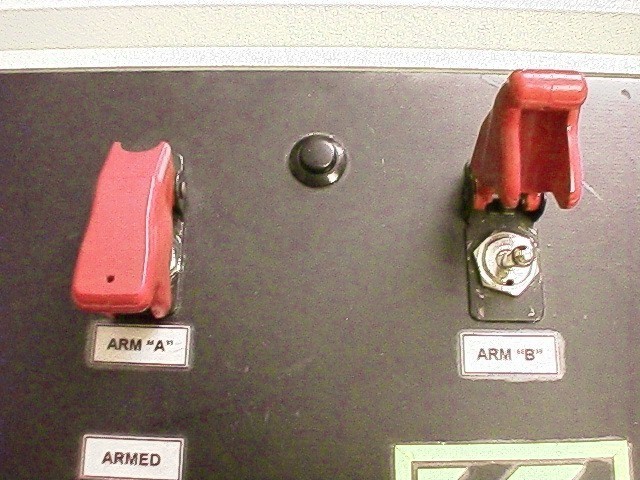

Red covered aircraft grade switch guards

 Two 7.2 volt batteries (in series) provide 14.4 volts of raw power

NiCad batteries provide the power for good ignition

 A good example of NOT getting the CG/CP relationship right

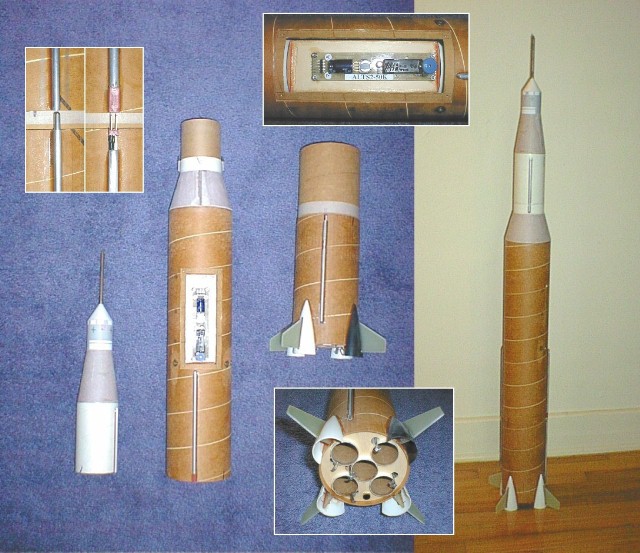

An aborted 4" model of the famous

Saturn V design

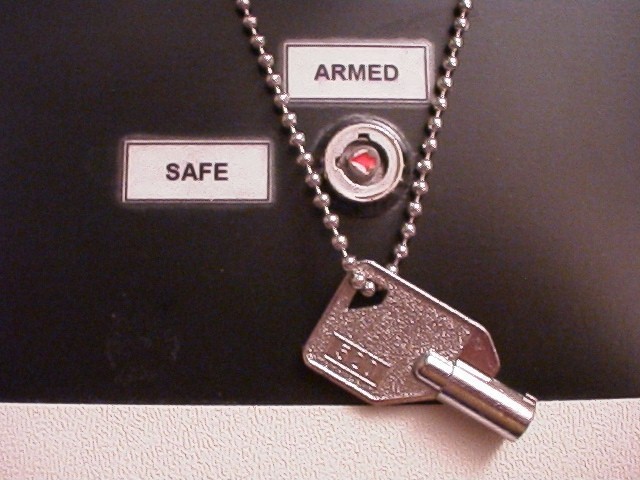

 Keeps itchy kid fingers from surprising you while you are hooking up igniters

A leftover computer keyboard lock provides security

 This lauch button looks like the real thing

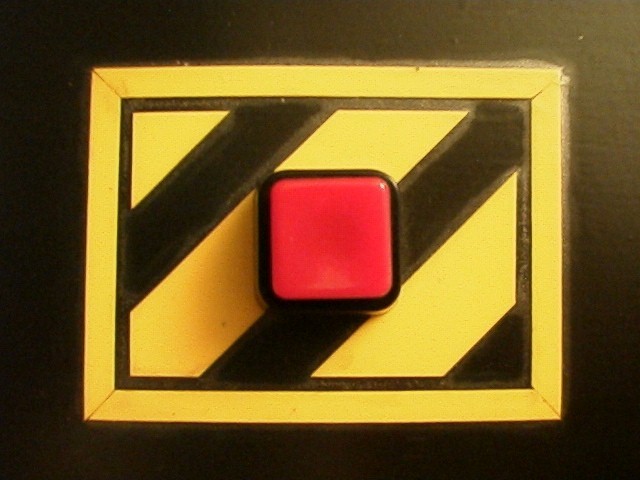

This button means business - push it and it's off to the races

CLICK HERE to acquire your own Red Guarded Switch Covers (from AircraftSpruce.com)
